Clean Air Systems

From air curtains, air showers to dehumidifiers, laminar air flow cabinets and sterile material storage cabinet, all types of clean air systems are manufactured by us. We use avant-garde sheet metal fabrication machinery to design the range as per industry standards. The clean air systems are used in various industries such as bio technology, drugs & pharmaceutical, electronic & semi-conductor and tissue culture. Further, these are also used in diagnostic centers, educational institutions, hospitals and space application centers.
Product Image (JCA-CLA )

Ceiling Suspended Laminar Air Flow

Price: 100 INR/Piece

Teknik Ceiling Laminar Airflow (CLA) unit is a containment equipment module utilizing a zoned unidirectional (laminar) down flow supply of air to positively pressurize and purge the working environment from potential contaminants; thereby providing enhanced aseptic work zones for maintaining process integrity and/or product protection FEATURES: Microprocessor control with audio/visual alarms for down flow velocity. Zoned magnehelic gauges for differential pressure across filters. Energy efficient teardrop lightings positioned away from down flow

Send Inquiry
Request To Call Back
Product Image (JCA-CLA)

Ceiling Laminar Airflow

Price: 100 INR/Piece

Teknik Ceiling Laminar Airflow (CLA) unit is a containment equipment module utilizing a zoned unidirectional (laminar) down flow supply of air to positively pressurize and purge the working environment from potential contaminants; thereby providing enhanced aseptic work zones for maintaining process integrity and/or product protection FEATURES: Microprocessor control with audio/visual alarms for down flow velocity. Zoned magnehelic gauges for differential pressure across filters. Energy efficient teardrop lightings positioned away from down flow

Send Inquiry
Request To Call Back
Product Image (JCA-031)

Garment Storage Cabinet

Price: 100 INR/Piece

Garment Storage Cabinet is a self standing providing down flow clean air to clean room Garments. Recommended in change rooms. Suitable for Pharmaceutical, Hospital and O/T, Electronic Industry etc. Supplied complete with Hepa & Pre filter, Motor Blower. Static Pressure Manometer & Built in U.V. Germicidal Light. Technical Specifications:-

Send Inquiry
Request To Call Back
Product Image ( JCA-09)

Uv Chamber With Uv Tube Light

Price: 99 INR/Piece

UV Chamber, which is fabricated using stainless steel. These chambers are highly suitable for storing of the instruments after sterilization. The ultra violet rays are maintained in the chamber in a specially way to keep the instruments sterilized. Features: Power Consumption < 10 watts. It has ultra violate blue light 8 W. Micro - Switch ON / OFF Control. Inside Body Covered with stainless steel. 12 SS Tray for store instrument.

Send Inquiry
Request To Call Back
Product Image (JCA-021)

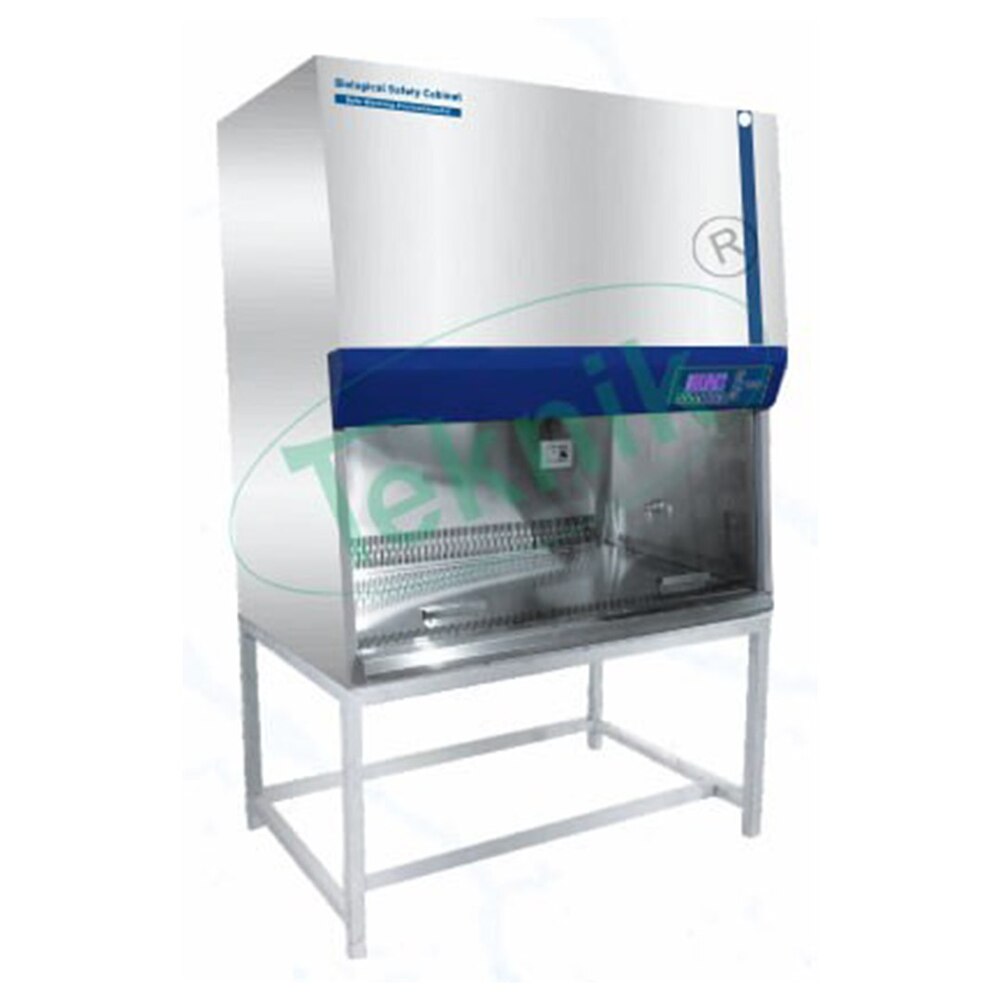

Bio Safe Biological Safety Cabinet

Price: 68000 INR/Piece

Bio Safe Biological Safety Cabinet : This Class I safety cabinet gives protection for the operator and the environment, with the airflow inwards, away from the operator. Only filtered air us released in the atmosphere. Within the cabinet, a negative pressure is maintained, suitable for operations where no product protection is needed. This is completely self contained, exhaust containment enclosure. Air from the operation zone passes through an efficient, two-stage filter system before being exhausted to the room or atmosphere. It can be installed on standard laboratory bench or on optional support stand. Environment and personnel protection is ensured by inward flow of room air at the operation area and high-efficiency particulate air (HEPA) filtration of exhaust air. The aerosols generated during the operation are sweeped by the inward airflow into the filter system, away from the operator. The HEPA filter is protected against large particles by a prefilter and it removes particulate contaminates down to sub-micron size from the exhaust air. It is supplied with cord and plug, suitable to work on 220V single phase, 50Hz, AC supply. Unique Features : Air Re-Circulation- providing highest level of cleanliness. Sliding Sash - renders unit convertible for use as a conventional vertical laminar down flow clean air work station. Filtered Exhaust - saves ambient environment and prevents build up of air borne particles. Supplementary Air Barrier - avoids contamination through make up air. Glove Ports and Gauntlets - permits working with low risk to medium risk organisms, pathogenic cultures. Built in "U.V. Germicidal light - facilitates working area sterilization before and after use.

Send Inquiry
Request To Call Back
Product Image (JCA-7S)

Laminar Air Flow SS

Price: 100 INR/Piece

Laminar Air Flow Cabinet ( Stainless Steel) Laminar Air Flow Cabinet ( Stainless Steel) Table/Floor Top model. Satin Finish S.S.Table Top(in lieu of formica Top). Transparent front door. Static Pressure. Inclined Manometer. Built in U.V.Germicidal light. Cock for gas, air or vacuum line. Cold rolled MS Sheet body duly powder coated. Stainless steel body duly polished. Particle dust count validation at site after installation. HEPA Filter. Pre Filter.

Send Inquiry
Request To Call Back
Product Image (JCA-06)

Tissue Culture Hood

Price: 100 INR/Piece

Tissue Culture Hood/Aseptic Cabinet is an elegant equipment with overall dimensions 1220 x 610 x 610 mm having front horizontal swing door opening of 1050 x 405 mm (frame) fitted with transparent plexiglass. Complete with fluorescent lighting and germicidal ultra violet tube.

Send Inquiry
Request To Call Back
Product Image (JCA-010)

Portable Tissue Culture Rack

Price: 10 INR/Piece

Portable Tissue Culture Rack Portable Tissue Culture Rack: A high quality of tissue culture rack with following features: Fabricated out of aluminium square pipe or angle fitted with sturdy castor wheel for smooth shifting movement of the unit. Shelves are made of wooden with aluimnium clad or frosted glass. Each shelves has been provided with four fluorescent tubes of 4 size. The unit is workable on 220V AC 50Hz single face. Heavy duty electronic chokes have been mounted separately on each shelf. Photoperiodic timer. Available shelves:- 4 shelves 5 shelves 6 shelves.

Send Inquiry
Request To Call Back
Product Image ( JCA-08)

Teknik Dehumidifiers

Price: 100 INR/Piece

Dehumidifiers Dehumidifiers are developed to remove excess moisture from atmosphere when manufacturing activities of tablets, capsules and air accuracy is required. By this product humidity can be brought down to 30% RH with accuracy ±3%RH. Capacity:- 1 Ton 1.5 Ton 2 Ton 3 Ton.

Send Inquiry
Request To Call Back
Product Image ( JCA-07D)

Laminar Flow Cabinet Digital

Price: 100 INR/Piece

Micro-Controller based : Menu Controlled with LCD Display. Operation Laminar Airflow Velocity : Average of 0.45 m/s or 90 fpm measured 150mm/6 filter face for 45 air changes/min. in work zone. Re-circulation : 70% of total. Air Velocity Exhaust : 30% of total Air Velocity. Air Cleanliness in Working Area : meets or exceeds US Federal Standard 209E Class 100. Main & Exhaust Filters : HEPA (Minipleat Optional). HEPA Filters : Rated for min. 99.97% efficiency at 0.3 micron particle size. Pre-Filters : Low pressure drop. High efficiency, 10 microns. UV Sterilization : In work chamber & Exhaust Plenum. Emission in the germicidal band UV-Cm 254mm. Alarm : Door unsafe position. Noise Level : <58 dbA at operator point. Power : 220-240V AC / 50 Hz 1 Ph. Inter Lock : UV / Fluorescent / Door. Exhaust : Double protection with HEPA & UV. Motors / Blowers : Double shaft, Balanced, low vibration.

Send Inquiry
Request To Call Back
Product Image ( JCA-07A)

Horizontal Laminar Air Flow Cabinets

Price: 100 INR/Piece

Laminar Air Flow Cabinets operate on laminar flow principle and involves double air filtration through coarse pre filters (upto "5" microns) and HEPA filters (down to"0.3"microns) for filtration of biological and particulate contaminants. A constant uni-directional air flowing either vertically or horizontally, is drawn from atmosphere and passed through pre as well as HEPA filters onto the work surface. Duro-board, which is pest and weather resistant is used in the fabrication. It is clad in from outside in laminated sheet, while the inner exposed areas are Epoxy painted. Stainless steel is used for making table top. Clear plexiglass is used for making side panels, which are fixed. This material is also used for making folding front door.

Send Inquiry
Request To Call Back
Product Image ( JCA-07)

Vertical Laminar Air Flow Cabinets

Price: 99 INR/Piece

Laminar Air Flow Cabinets These laminar air flow cabinets operate on laminar flow principle, involving double filtration of air through coarse Pre Filters (upto 5 microns) and Hepa filters (down to 0.3 microns). The Biological & Particulate contaminants are efficiently filtered. A constant uni-directional, horizontal or vertical air flow is drawn from atmosphere and passed through both, pre and Hepa filters onto the work surface. Reinforced pest and weather resistant Duro-board is used in fabrication, which is clad in from outside in laminated sheet and inner exposed area is finished in Epoxy paint. Stainless steel sheet for table top. Fixed side panels made of clear plexiglass. Tje folding front door is made of clear plexiglass.

Send Inquiry
Request To Call Back
Product Image (JCA-06A)

Inoculation Hood

Price: 100 INR/Piece

Inoculation Hood Inoculation Hood is fabricated out of pest and weather resistant Duro-board or mild steel sheet. Wood construction clad in laminated sheet from outside and inner exposed parts painted with Epoxy paint. The mild steel model is enamel painted. Provided with rectangular, tight covered opening on one side for putting the material in the chamber and two covered round openings in front for handling of the material. A clear Acrylic fixed window in front provided for observation. Complete with fluorescent lighting and germicidal Ultra Violet (UV) tube.

Send Inquiry
Request To Call Back
Product Image (JCA-01)

Air Curtains

Price: 100 INR/Piece

Air Curtains are invisible air door, keeps interior of a clean room dust-free, stops entry of insects, serves as temperature barrier and isolates heating, cooling & humidity. Fabricated out of mild steel sheet. Balanced blowers are mounted on strong inside metal frame. Exterior finished in enamel or hammertone paint. Wall or roof mountings are provided. Models are available as per door size :- 2 feet. 2 feet. 3 feet. 4 feet. 6 feet .

Send Inquiry
Request To Call Back
Product Image (JCA-03)

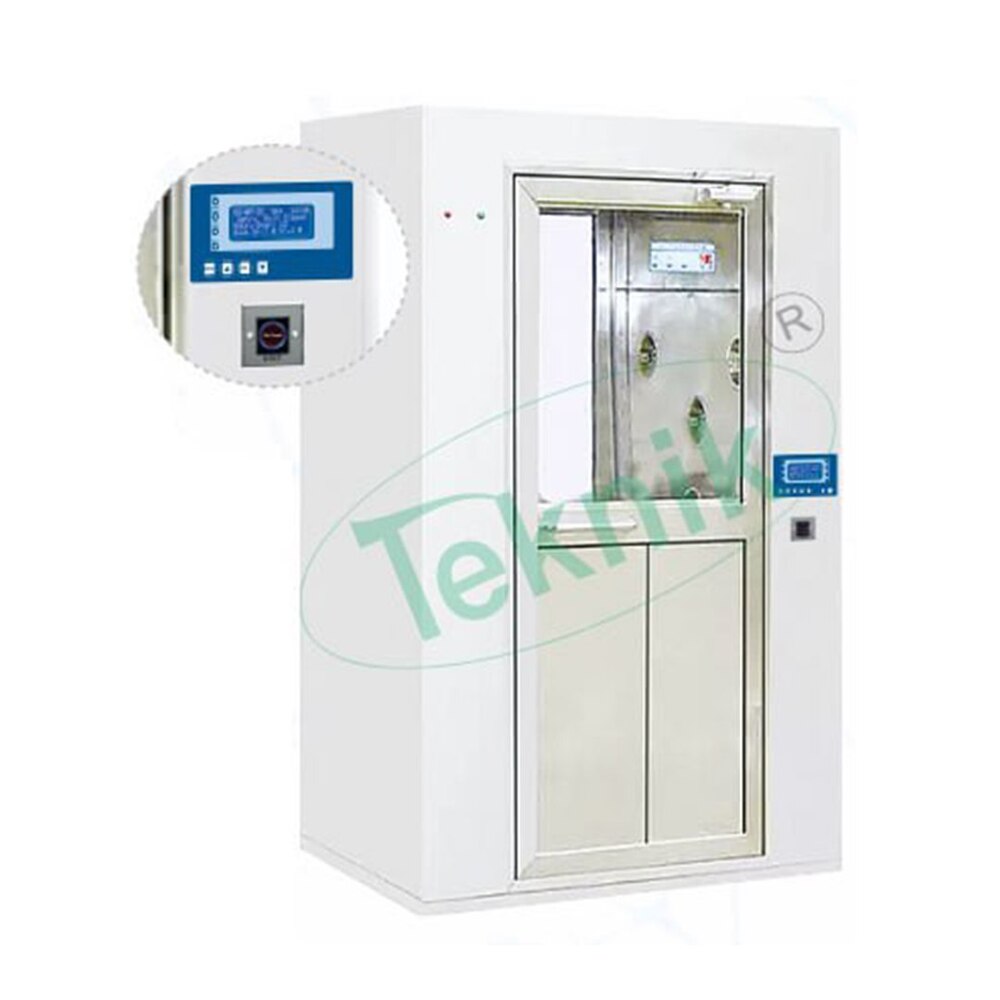

Air Showers

Price: 100 INR/Piece

Air Showers are designed to provide protection from biological & particulate contamination in high traffic areas and entrances of clean air laboratories or rooms. Outer made of thick CRC sheet duly powder coated. Dynamically balanced blowers with minimum vibration and noise level draw the air and blow it through high efficiency HEPA filters accurate down to 0.3 microns with efficiency of 99.97% bacteria free area. Automatic actuating air-shower operation, adjustable timeduration of air showers, recirculation of uncontaminated air, adjustable air-nozzles, clear acrylic door, solid state control system, provision of fluorescent tube lighting are the main technical features. Available in: Class 10000. Class 100.

Send Inquiry
Request To Call Back
Product Image (JCA-041)

Sterile Material Storage Cabinet

Price: 100 INR/Piece

Sterile Material Storage Cabinet (Vertical Flow) is a self standing, down flow clean air cabinet for use in clean rooms for storage of materials. Suitable for Pharmaceuticals, Hospitals and O/T, Electronic Industry etc. Supplied complete with HEPA & Prefilter, Motor Blower, Shelves. Static Pressure Manometer & Built in U.V. Germicidal Light.

Send Inquiry
Request To Call Back
Product Image (JCA-05)

Fume Hood

Price: 44000 INR/Piece

Fume Hoods are often used in labs for protecting personnel and equipment, as they contain and exhaust toxic, obnoxious, and pungent smelling gases. The fume hood compliance with international standard on fume handling systems. A motor driven, less vibrating and noise free dynamically balanced blower creates negative pressure and sucks contaminated air from work area and throws that air in high-up atmosphere through ductings. Duro-board clad with laminated sheet from outside and non-corrosive, chemical resistant Epoxy paint from inside is the design structure of fume hoods. It comes with an teak wood made up and down sliding Sash, mounted in thick glass sheet and workable on weights and pulleys system counter balanced. The chamber is lit by fluorescent lights. Other accessories include: Gas tap Electric power plug Stainless steel wash basin Water tap Hood is held at suitable level from ground by a work-bench with cupboard.

Send Inquiry
Request To Call Back
