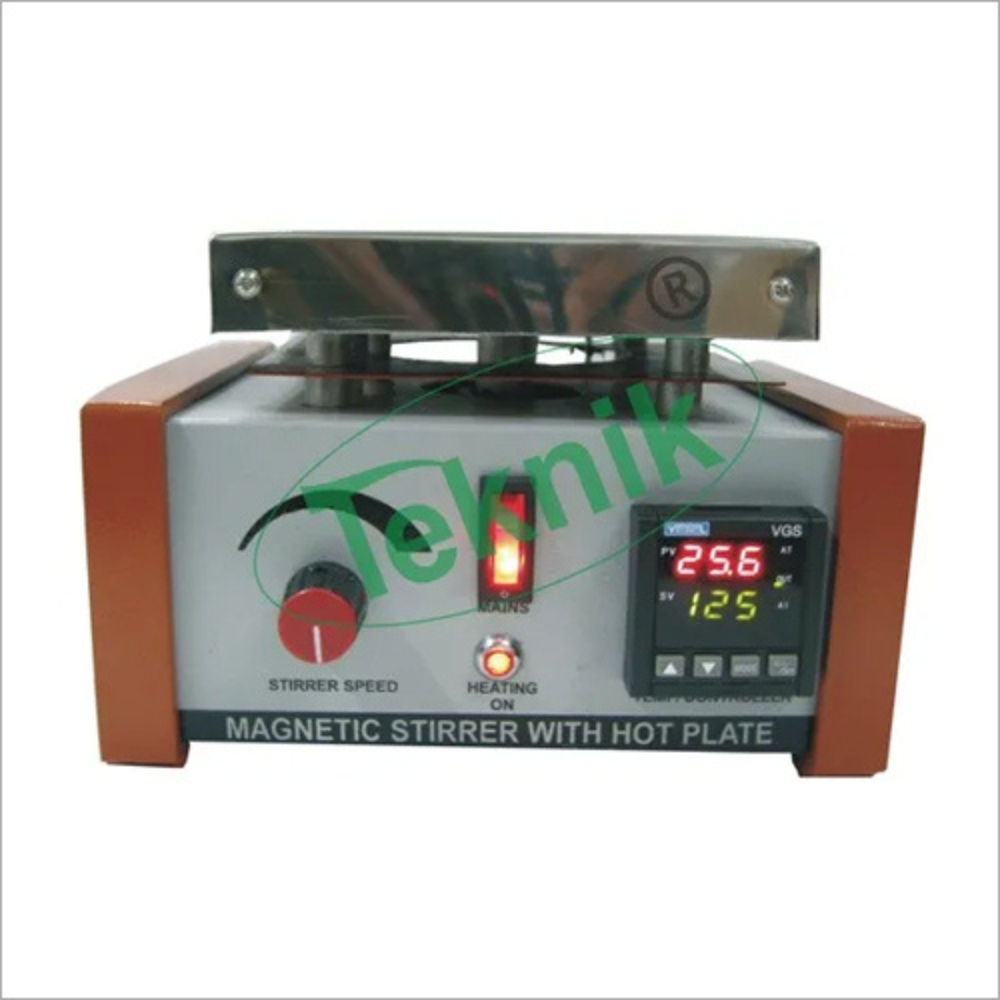

Digital Magnetic Stirrer With Hot Plate

Product Description

Digital Magnetic Stirrer With Hot Plate

Compact stirring device uses a rotating magnetic field by a permanent magnet including variable stirring action from the speed, ranging from 100- 1400 rpm with š±2 as speed accuracy. From below the container, magnetic field is applied. PTFE rotor in the liquid to be stirred does the stirring work. SS top plate bearing medium temperature maximum 250šC with an accuracy temperature setting of š±5š C control and digital temperature controller with an accuracy setting of š±5šC, along with the Safety circuit hot plate 25šC over facility. The system is completed by magnetic stirrer, digital temperature controller, stands and clips, pilot lamp, plug-cord, speed regulator continuously variable and on-off switch. It works on 220V AC 50Hz single phase.

Models with or without Hot Plate are available:
JEQ-17 (a):-

Magnetic stirrer with Hot Plate.

Capacity : 1, 2, 5, 10 litre.

JEQ-17 (b):-

Magnetic stirrer without Hot Plate.

Capacity : 1, 2, 5, 10 litre.

CODE: JEQ-17M

Specification:

Functional description:
Electric orbital rotator used to conduct agglutination tests on cards or glass plates.

Technical:

Compact stirring device utilizing a rotating magnetic field by a permanent magnet including variable stirring action from the speed from 100- 1400 rpm with speed accuracy of š±2. Magnetic field applied from below the container. Stirring is accomplished by a Teflon rotor placed in the liquid to be stirred.
Stainless steel top plate
Digital temperature controller
Hot top indicator
Adjustable safety cut off
Speed range: 50 to 1500 rpm
Maximum Stir Bar length of 80mm
Heating temperature range: 0-40š Celsius
Separate knobs for controlling stir speed and heat level.
Beakers/flasks capacity up to 3000ml in capacity
Supplied with suitable surge protection equipment
Accessories: 5 magnetic bars (25 mm)
